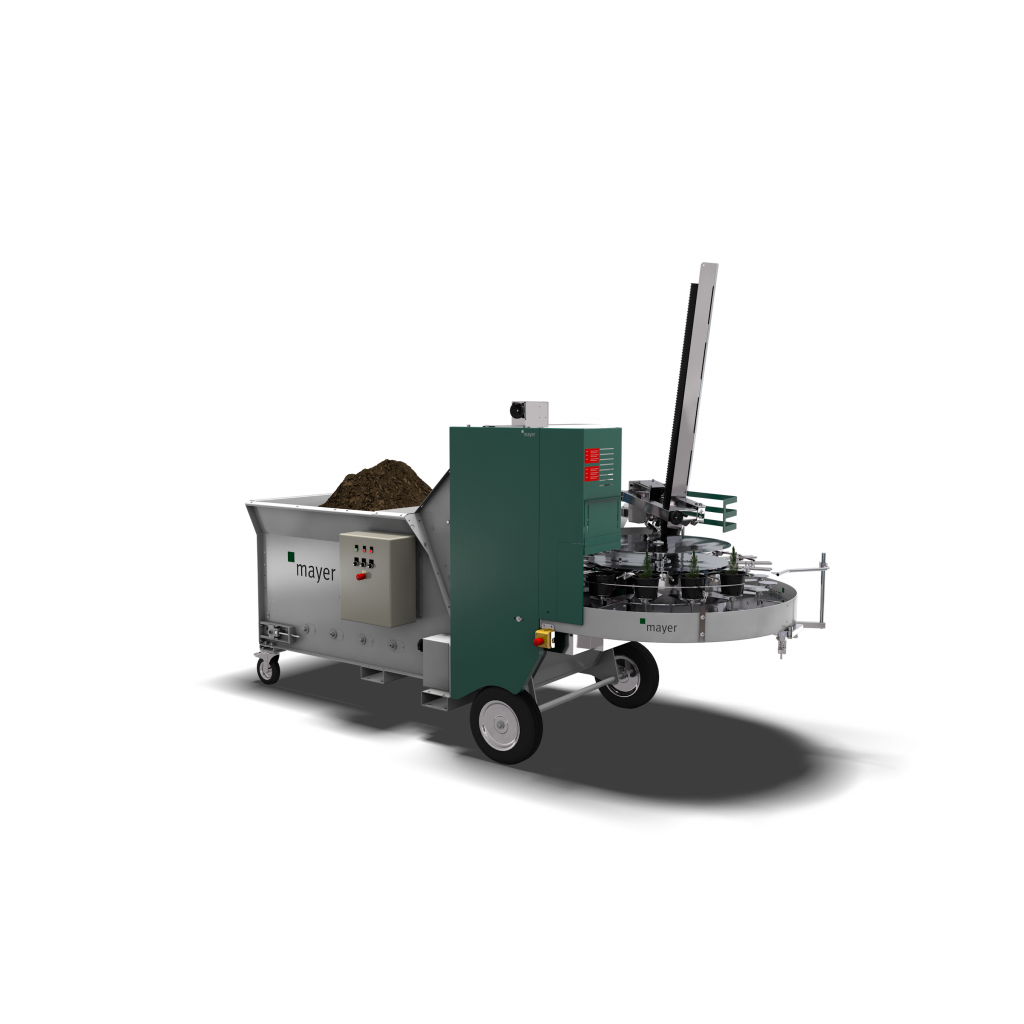

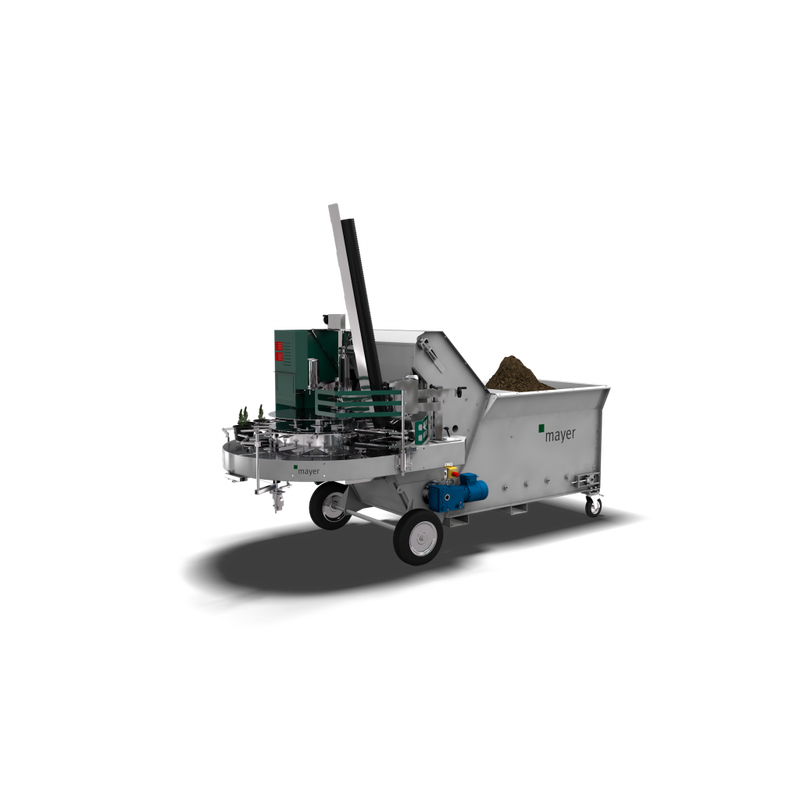

THE MAYER POTTING MACHINE TM 1810F

Anyone who regards simple operation and high performance as one of the most important criteria for effective working will hit the bull`s eye with the TM 1810F. In addition, the separate drive of the turntable and the soil hopper makes the machine extremely easy to operate and maintain.

• Compact potting machine for small and medium sized ornamental plant producer (up to 900.000 pots a year)

• Smooth movement of the turntable even at top production rates

• Infinite adjustment of pot sizes and machine output

• Exact positioning of the pot for a consistent and accurate drilling of central planting holes

• Adaption of the soil supply quantity according to pot size and hourly output

• Structure-preserving substrate transport for a constant crop and plant quality

• Sufficient space for potting directly on the turntable

• Separation and processing of round and square pots

• High flexibility due to wide range of usable pot sizes

• Mobile potting machine with high safety standards, confirms to latest CE Guidelines

Technical Data

Brand: Mayer

Machinery – model: Potting machine

Series: TM 1810

Length/ width/ height: 3600/ 1700 / 1750 mm

Working height: ca. 850 mm

Weight: 880 Kg

Power connection: 400V/50Hz, 5-polig

Power input: 3,0 kW

Capacity of the soil hopper: 1,25 m³

Soil hopper extension: up to 3,0 m³

Pot sizes: 5 to 22 cm

Production speed: up to 3.600 pots/ hour

Workplace related emission value: 73 dB (A)
