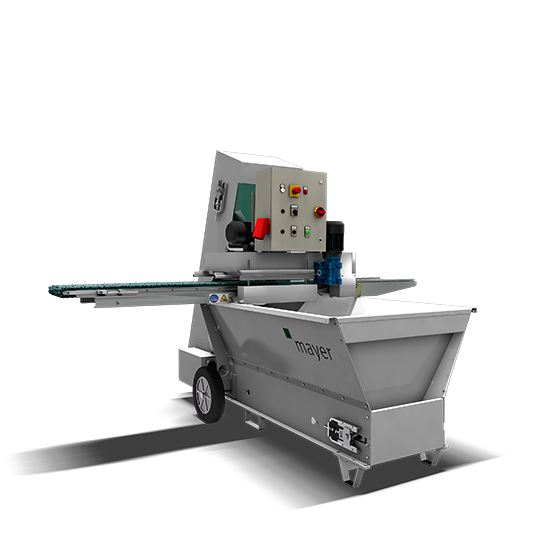

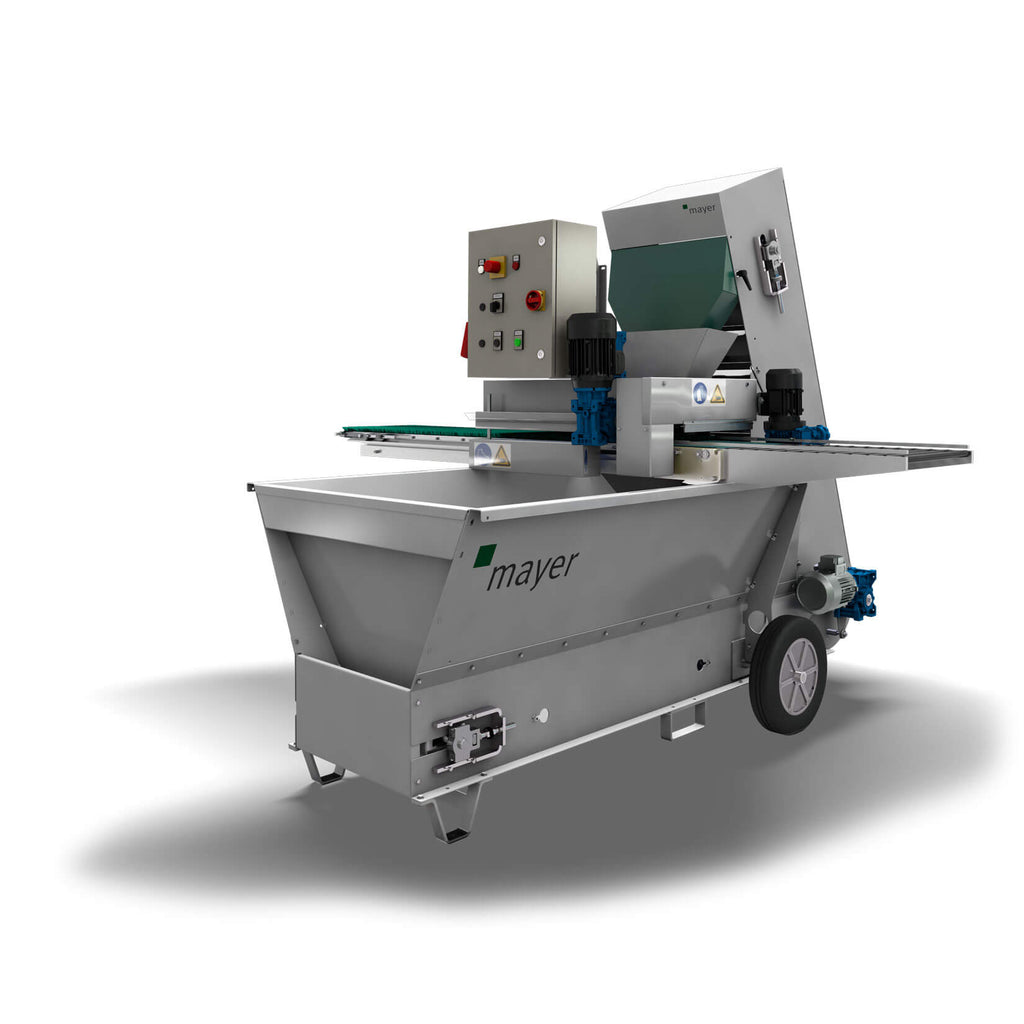

THE MAYER TRAY FILLER SPECIAL

The Tray Filler Special is the specialist for filling crates and trays, especially for growing trays with small cells. It can be easily integrated into filling and sowing lines.

Modular machine, consisting of: Soil conveying module:

• Soil hopper approx. 600 l, with adjustable rubber conveyor belt (free-wheel)

• Chain elevator with sticked shovels, fix speed with forward and reverse drive

• Elevator easy to maintain with detachable front panel

Tray filling module special:

• Tray/flat feed conveyor with mechanical speed control

• Naps on surface of conveyor belt for optimum feed of trays

• Electronic control system for constant soil supply

• Adjustable distribution rotor for homogenous filling up tray's brim

• Brush off device with feedback of soil into soil hopper

• Vibrator, frequency controlled, for compacting the soil (optional)

• Electronic control box

Brand: Mayer

Machinery model: Tray filler

Series: KF Specials

Length/ Width/ Height: 2350 / 1900/ 2000 mm

Weight: 560 kg

Power connection: 400V/ 50Hz, 3-phases

Capacity of soil hopper: 600 l

Production speed: up to 600 trays / hour

Accessories: Vibrator for tray conveyor belt Soil hopper extension 1,5 m³
